24 Cavity 38mm Cap Mould

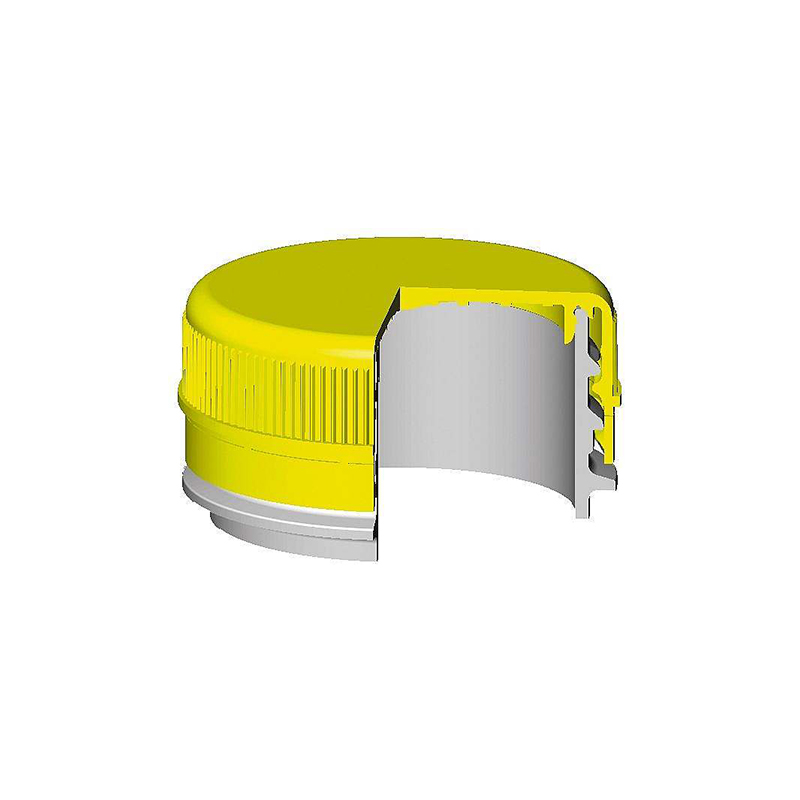

38mm Cap mould is a cap mould for making 38mm plastic cap, cap neck finish is 38mm, have 2start and 3start, and cap with tamper evidence band, the band have two choice, folded or not folded.

38mm Cap mould cavity number can be from 8 to 48cavity, with hot runner or cold runner.

Cap weight is between 2.6-3g

Cycle time is around 10sec per shot

Inquiry Download

Description
Inquiry
How to Order

Product Name	24 Cavity 38mm Cap Mould
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC30-35 for base material.
	HRC52-55 for core and cavity material.
	HRC60 for ejector sleeve and other special parts.
Plastic material	PP,PE,HDPE etc.
Cavity Number	1x4, 1x6, 1x8,1x12, 1x16, 1x24, 1x32, etc.
Injection System	Pin gate, Submarine gate, Valve gate etc
Ejector System	Unscrew by motor, stripper plate, ejector sleeve, ejector pin
Cycle Time	Based on cap design
Delivery Time	45-60 Days
Mould lifetime	At least 3million Shots
Warranty Time	One Year or 1million shots

24 Cavity 38mm Cap Mould

1. Cap with folded ring, cycle time is 12sec per shot

2. Each cavity and core have independent cooling system for hot runner mould.

3. Security ring is cut and folded by cap slitting & folding machine

4. Stainless material have nice mirror hand polishing

5. Each mould plates with electroplating treatment, which play a very long time rust prevention

6. Runner system: Cold Runer, Half Hot Runner or Hot Runner system

7. Hot runner brand: China advanced brand or imported hot runner system brand.

8.Skilled Language in communication and experienced technical support

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous 24 Cavity 38mm Cap Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM 24 Cavity 38mm Cap Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2.Quotation Making	Mould Quotation will be finished in 1 day according to information we get.
3.Negotiation	The quality, price, material, delivery time, payment item, etc.
4.Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5.Mould	1. confirm the proucts and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device process
	8. Assemble mold
6.Mould Testing	When moulds are finished, we will test the mould and we will send samples to client.
7. Sample confirmation	If the first sample is not satisfied by customer when it is come out. We modify the mould and until meet customer's satisfaction.
8.Delivery	Delivery goods by sea or by air, according to customer's requirement.
