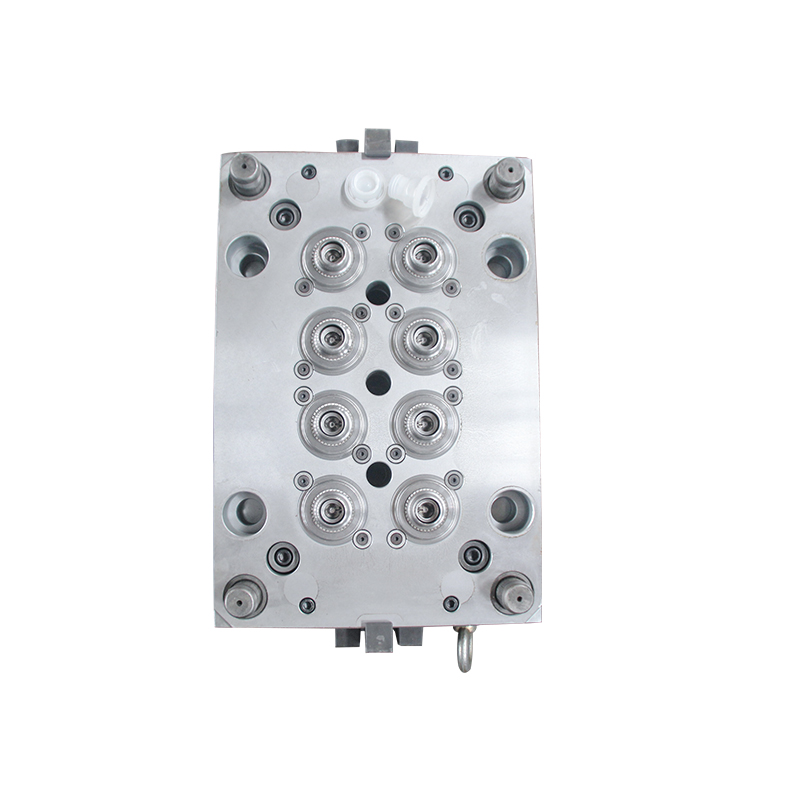

8 Cavity Spout Cap Mould

Spout Cap Mould is a EVA inner part of oil cap, match for 42mm pull out closure.

● Using this closures, container becomes safe and secure.

● The closure once installed can`t be reused again on any container and container also become unusable.

● Pulling the cap it forms a bottle neck making extraction very easy.

● No spillage or leakages so that customer can use the last drop of contained product.

● Printing or Embossing option for brand name or logo of the company for outer part of closure.

The inner EVA part dimension as below:

Outer diameter: 46.17mm

Locking diameter(inner collar): 42.5mm

Collar size: 8mm

Close cap height: 20.40mm

Open cal height: 41.5mm

Inquiry Download

Description
Inquiry
How to Order

Product Name	8 Cavity Spout Cap Mould
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC30-35 for base material.
	HRC52-55 for core and cavity material.
	HRC60 for ejector sleeve and other special parts.
Plastic material	PP,PE,HDPE etc.
Cavity Number	1x4, 1x6, 1x8,1x12, 1x16, 1x24, 1x32, etc.
Injection System	Pin gate, Submarine gate, Valve gate etc
Ejector System	Unscrew by motor, stripper plate, ejector sleeve, ejector pin
Cycle Time	Based on cap design
Delivery Time	45-60 Days
Mould lifetime	At least 3million Shots
Warranty Time	One Year or 1million shots

8 Cavity Spout Cap Mould Feature

1. Provide customized services as per your bottle shape.

2. Each cavity and core have independent cooling system for hot runner mould.

3. EVA material required for this spout part, and assembled with outer oil cap.

4. Stainless material have nice mirror hand polishing

5. Each mould plates with electroplating treatment, which play a very long time rust prevention

6. Runner system: Cold Runer or Hot Runner system

7. Hot runner brand: China advanced brand or imported hot runner system brand.

8.Skilled Language in communication and experienced technical support

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous 8 Cavity Spout Cap Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM 8 Cavity Spout Cap Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2.Quotation Making	Mould Quotation will be finished in 1 day according to information we get.
3.Negotiation	The quality, price, material, delivery time, payment item, etc.
4.Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5.Mould	1. confirm the proucts and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device process
	8. Assemble mold
6.Mould Testing	When moulds are finished, we will test the mould and we will send samples to client.
7. Sample confirmation	If the first sample is not satisfied by customer when it is come out. We modify the mould and until meet customer's satisfaction.
8.Delivery	Delivery goods by sea or by air, according to customer's requirement.
