8 Cavity Spray Cap Mould

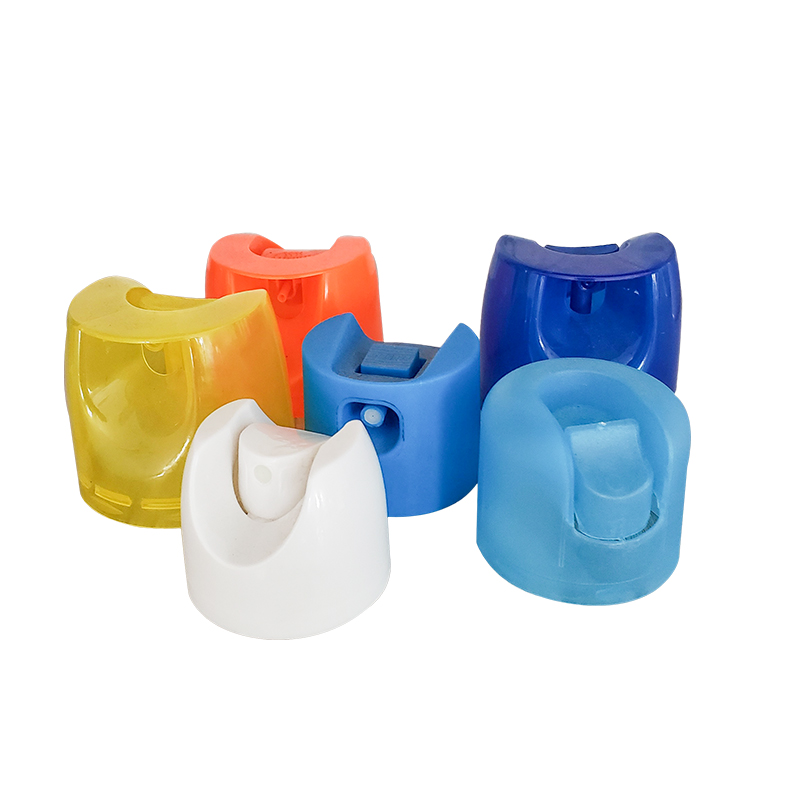

Spray Cap Mould is a plastic spray cover for 52mm 65mm Aerosol Spray can

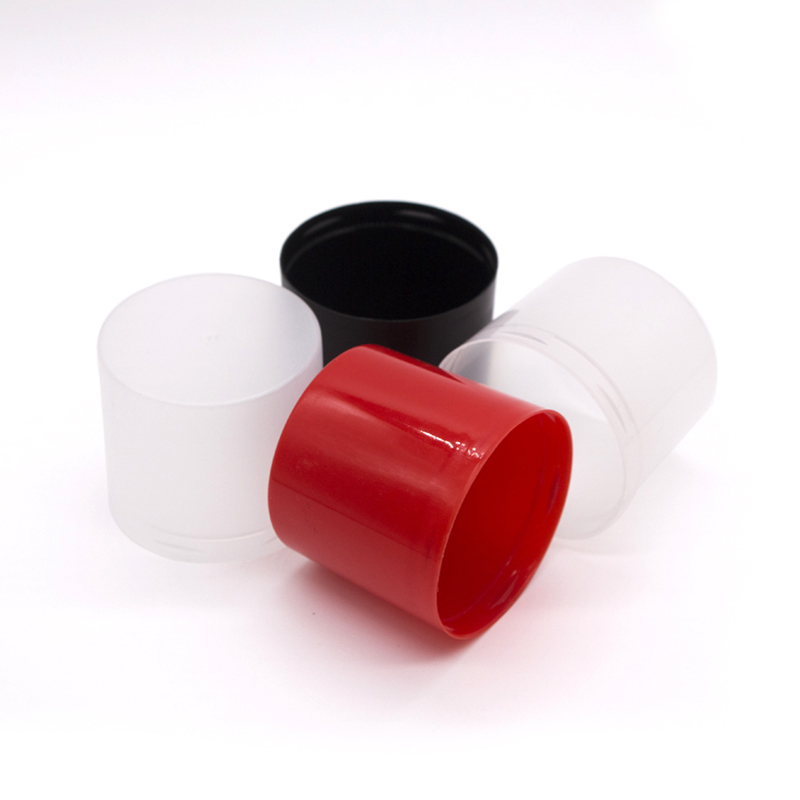

Spray Cap have a press function, and also can provide the flat cover without press function.

Aerosol spray can cap is PP material, can match with standard aerosol tin can or aluminum can.

We can make the design for 4cavity, 8cavity and 12cavity mould, with oil cylinder for moving slider. Flat cover is much more easy, we can make the suitable design as per your machine model.

Inquiry Download

Description
Inquiry
How to Order

Product Name	8 Cavity Spray Cap Mould
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Core &Cavity Steel	S136,FS636,632,ASSAB S136
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC30-35 for base material.
	HRC52-55 for core and cavity material.
	HRC60 for ejector sleeve and other special parts.
Plastic material	PP,PE,HDPE etc.
Cavity Number	1x4, 1x6, 1x8,1x12
Injection System	Pin gate, Submarine gate, Valve gate etc
Ejector System	Unscrew by motor, stripper plate, ejector sleeve, ejector pin
Cycle Time	Based on cap design
Delivery Time	45-60 Days
Mould lifetime	At least 3million Shots
Warranty Time	One Year or 1million shots

8 Cavity Spray Cap Mould Feature

1. Provide customized services as per your bottle shape.

2. Each cavity and core have independent cooling system for hot runner mould.

3. With air cylinder or slider design for demoulding

4. Stainless material have nice mirror hand polishing

5. Each mould plates with electroplating treatment, which play a very long time rust prevention

6. Runner system: Cold Runer or Hot Runner system

7. Hot runner brand: China advanced brand or imported hot runner system brand.

8.Skilled Language in communication and experienced technical support

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous 8 Cavity Spray Cap Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM 8 Cavity Spray Cap Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2.Quotation Making	Mould Quotation will be finished in 1 day according to information we get.
3.Negotiation	The quality, price, material, delivery time, payment item, etc.
4.Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5.Mould	1. confirm the proucts and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device process
	8. Assemble mold
6.Mould Testing	When moulds are finished, we will test the mould and we will send samples to client.
7. Sample confirmation	If the first sample is not satisfied by customer when it is come out. We modify the mould and until meet customer's satisfaction.
8.Delivery	Delivery goods by sea or by air, according to customer's requirement.
