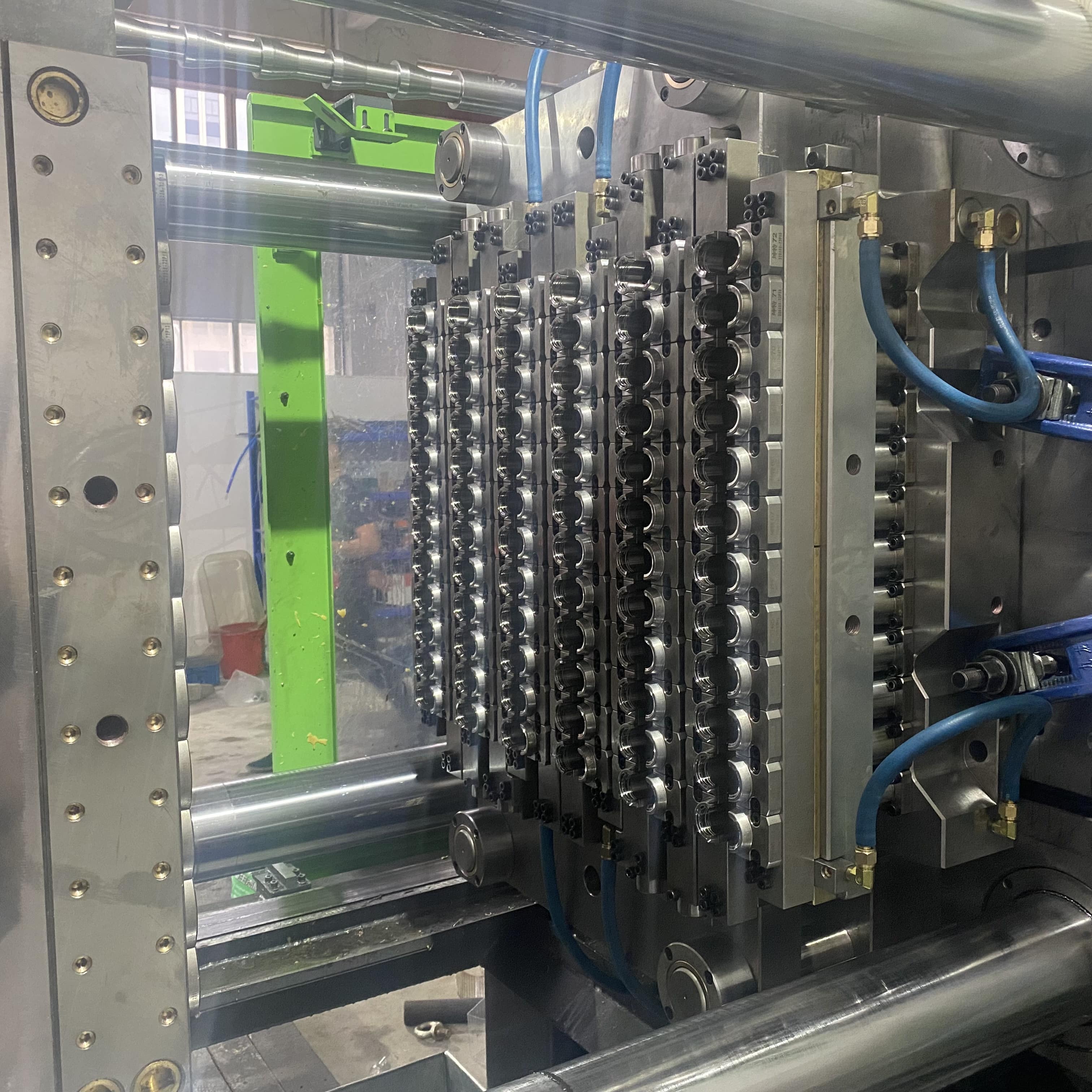

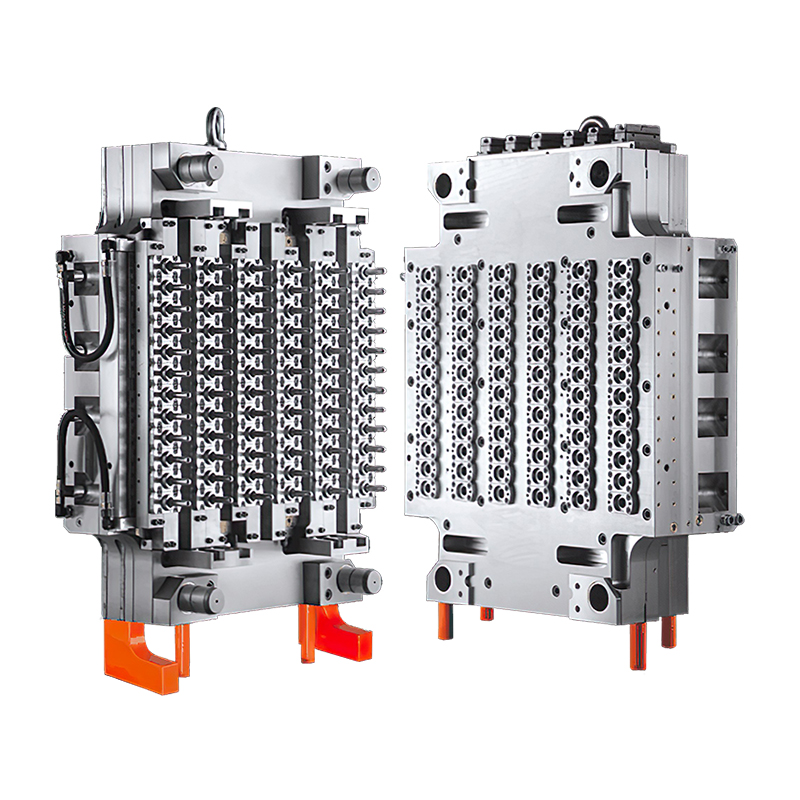

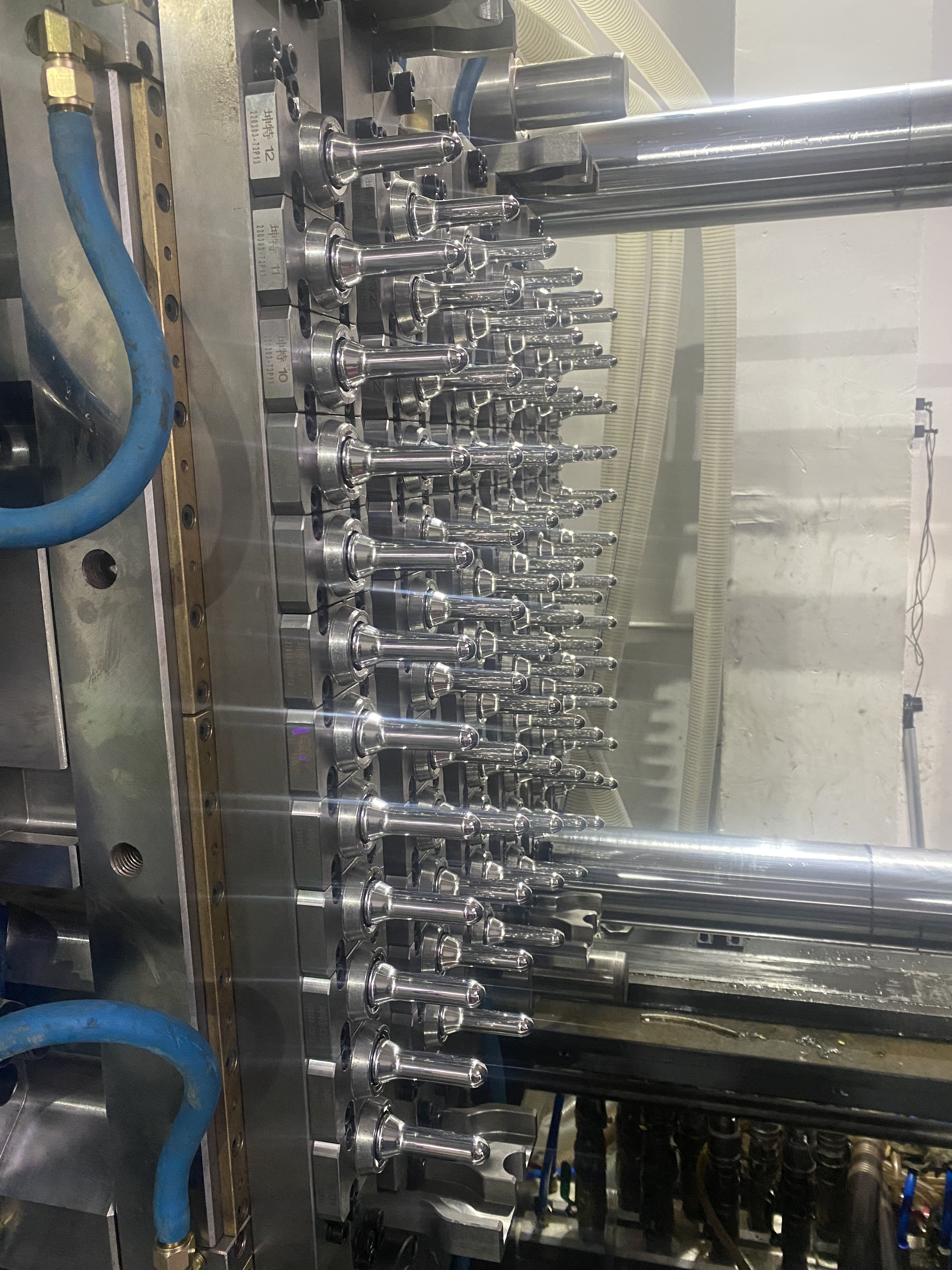

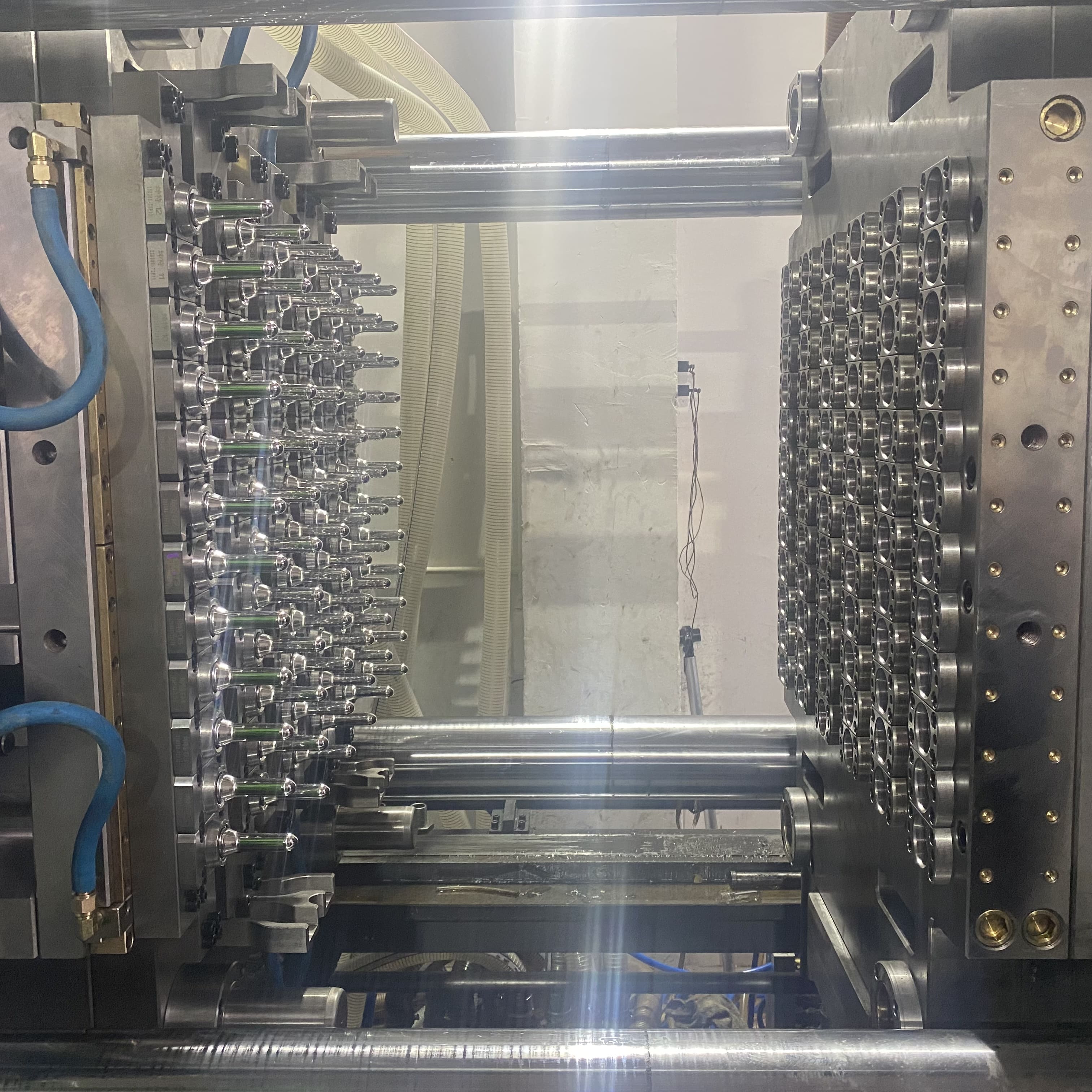

72 Cavity PET Preform Mould

Our 72 cavity PET preform mould width is also optimized, and with this kind of smaller size design, preform mould can be produced on 380 Ton Injection moulding machine, which Tie bar is 720mmx720mm. The cooling system is also optimized for 72 cavity mould, the mould use the 2 inch cooling pipe, which have the best cooling performance, which ensures the quality of the preform, besides, it demonstrably improves the production capacity and saves your production cost.

Its unique design consists of 72 cavities on the mold, which are all identical, and is equipped with an electric control system.

It features a high-precision temperature measurement system and an independent thermocouple for each cavity. The mold also features an international standard screw neck and imported nitrided steel.

We have the ability to quickly provide accessories for any brand preform mold, such as HUSKY, MHT, SIPA, and OTTO, our parts are 100% suitable for the original mold.

Inquiry Download

Description
Inquiry
How to Order

Product Name	72 Cavity PET Preform mould
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC32-35 for slider and stripper palte and other plates
	HRC49-51 for core and cavity material.
	HRC49-51 for Neck ring and Lock ring
Plastic material	PET resin
Cavity Number	1x8, 1x16,1x24,1x32,1x48,1x64,1x72
Injection System	Short tail, Long tail, Pin Valve gate
Ejector System	Stripper plate
Cycle Time	Based on preform weight
Delivery Time	45-60 Days
Mould lifetime	At least 3million Shots
Warranty Time	One Year or 1million shots

72 Cavity PET Preform mould Feature

1. Neck size: 15mm,18mm,20mm,24mm,28mm,30mm, Weight: from 5g to 45g, Gate: Pin valve type

2. Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform

3. Chinese stainless steel or Imported Stainless steel from ASSAB for mold stacks and other components

4. Hardness up to HRC49-51 after special heat-treatment

5. Taper matching design for core and lock ring, good for venting and easy for neck solidification

6. Double taper design neck rings, whcih allow high injection force without flash

7. Pin valve hot runner system is applied, which is best runner system for preform mould

8.Each mould plates with electroplating treatment, which play a very long time rust prevention

9.Mould with stable performance and long lifetime to creat value for vustomers.

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous 72 Cavity PET Preform Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM 72 Cavity PET Preform Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2. Quotation Making	Mould Quotation will be finished in 1 day according to the information we get.
3. Negotiation	The quality, price, material, delivery time, payment item, etc.
4. Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5. Mould	1. confirm the products and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device processes
	8. Assemble mold
6. Mould Testing	When moulds are finished, we will test the mould and we will send samples to the client.
7. Sample confirmation	If the first sample is not satisfied by the customer when it is come out. We modify the mould until meet the customer’s satisfaction.
8. Delivery	Delivery goods by sea or by air, according to customer’s requirement.
