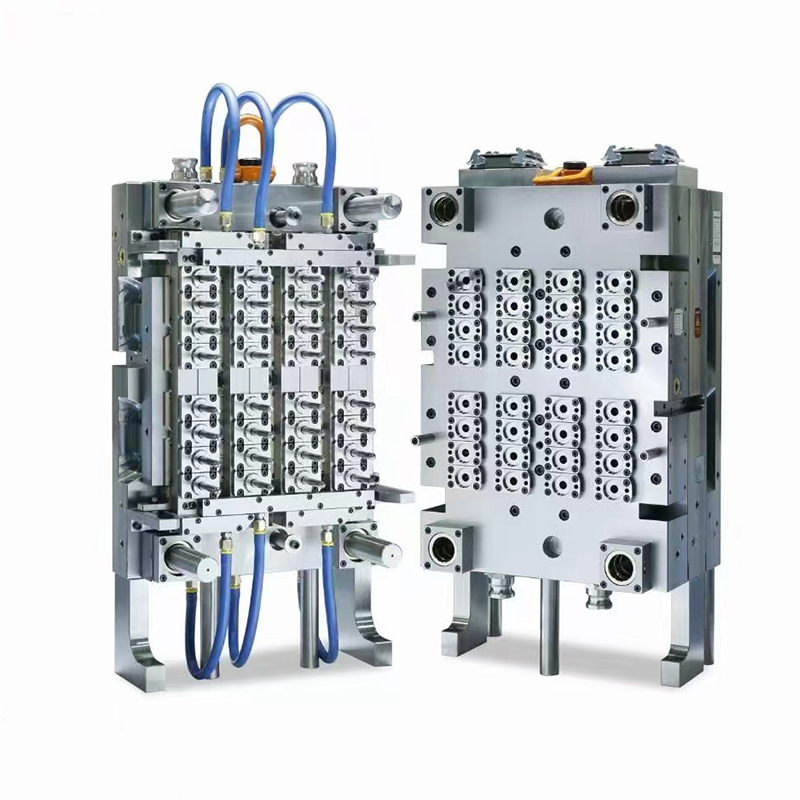

PP Blood Tube Mould

Except the industry application of water and beverage preform mould, edible oil preform mould, or preform mould for cosmetic & personal care bottle, we also provide the PP/PET preform mould for medical packing, the main products are blood collection tube and new coronavirus sampling tube. We has rich experience to offer high quality preform molds for all types of injection machines, we are confidence to be your reliable PET/PP preform mould supplier and create more value for you!

Inquiry Download

Description
Inquiry
How to Order

Product Name	PP Blood Tube mould
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Core &Cavity Steel	S136,FS636,632 (Chinese Steel) ASSAB S136(Sweden)
Mould base	P20,4Cr13, Standard Mould Base
Steel hardness:	HRC32-35 for slider and stripper palte and other plates
	HRC49-51 for core and cavity material.
	HRC49-51 for Neck ring and Lock ring
Plastic material	PET resin
Cavity Number	1x8, 1x16,1x24,1x32,1x48,1x64,1x72
Injection System	Short tail, Long tail, Pin Valve gate
Ejector System	Stripper plate
Cycle Time	Based on preform weight
Delivery Time	45-60 Days
Mould lifetime	At least 3million Shots
Warranty Time	One Year or 1million shots

PP Blood Tube Mould Feature

1. Blood Collection Tube, Coroavirus sampling tube and other medical use tube

2. Cavity water flow adopts spiral type independent of cycle structure which is good for fast cooling of preform

3. Chinese stainless steel or Imported Stainless steel from ASSAB for mold stacks and other components

4. Hardness up to HRC49-51 after special heat-treatment

5. Taper matching design for core and lock ring, good for venting and easy for neck solidification

6. Double taper design neck rings, whcih allow high injection force without flash

7. Pin valve hot runner system is applied, which is best runner system for preform mould

8.Each mould plates with electroplating treatment, which play a very long time rust prevention

9.Mould with stable performance and long lifetime to creat value for vustomers.

We have own standard mould frame for cap mould and handle mould, we make complete inspection on mould to ensure the structure consistence and spare parts standardized. In addition, we will do independent standardization test on mould cooling system and hot runner system. We are famous PP Blood Tube Mould suppliers and manufacturers in China. We take full range test and analysis on product size, appearance, injection techniques and Physical Parameter. The analysis includes mold flow analysis, mold ejection, cooling system, rationality of guide system, application of mold parts specification, customer's machine selection and application of special requirements. We also OEM/ODM PP Blood Tube Mould design & manufacturing.

How to place an order for moulds?
1.R&D	We support customer R&D. Make the files or improve the design if you needed.
2. Quotation Making	Mould Quotation will be finished in 1 day according to the information we get.
3. Negotiation	The quality, price, material, delivery time, payment item, etc.
4. Mould Design	1-2days for product 3D/2D drawing design as per customer's design. Then in further make the mould 2D/3D design.
5. Mould	1. confirm the products and the mold design
	2. Mould material prepare
	3. Rough machining(heat treatment on mold base and pre-harden on mold)
	4. CNC/ Vacuum Hardening on mold main spare parts
	5. finishing machining( JDPAINT, DEM.etc)
	6. Dimension inspection
	7. Ejector& runner& cooling & other device processes
	8. Assemble mold
6. Mould Testing	When moulds are finished, we will test the mould and we will send samples to the client.
7. Sample confirmation	If the first sample is not satisfied by the customer when it is come out. We modify the mould until meet the customer’s satisfaction.
8. Delivery	Delivery goods by sea or by air, according to customer’s requirement.
